德國HYDRO-BIOS公司——浮游生物多聯采樣網
浮游生物連續采樣網MultiNet?
Multi Plankton Sampler MultiNet?

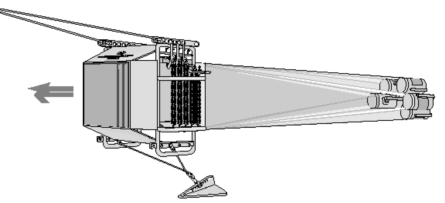

水平操作狀態 OceanLab軟件
MultiNet?浮游生物采樣網介紹：

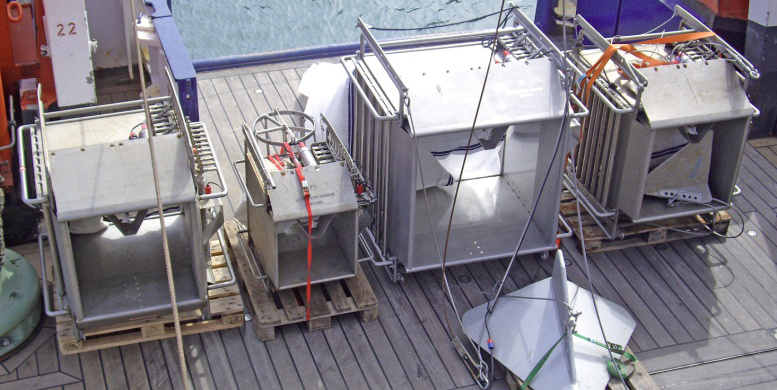

MultiNet?浮游生物采樣網是一款浮游生物自動采樣器，浮游生物采樣網可以在連續的水層中進行水平采樣和垂直采樣。每個MultiNet?浮游生物采樣網安裝5只（9只）網袋。MultiNet?浮游生物采樣網開口面積：Mini型，0.125m2；Midi型，0.25m2，Maxi型，0.5m2；Mammoth型，1m2。MultiNet?浮游生物采樣網的整個系統由甲板控制單元、水下控制單元、不銹鋼框架、網衣、網底管等組成，5（9）只網袋通過拉鏈連接器連接在不銹鋼框架的帆布部分上。
|
|
|
|

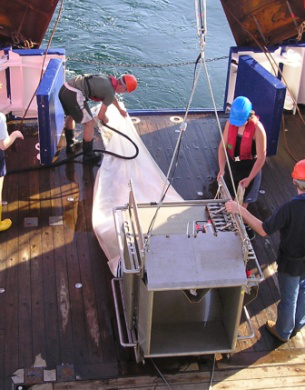

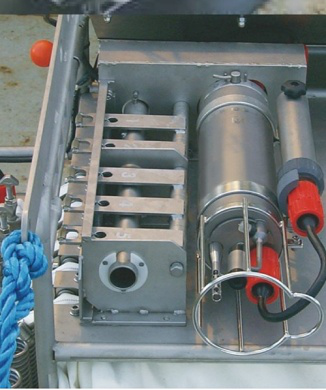

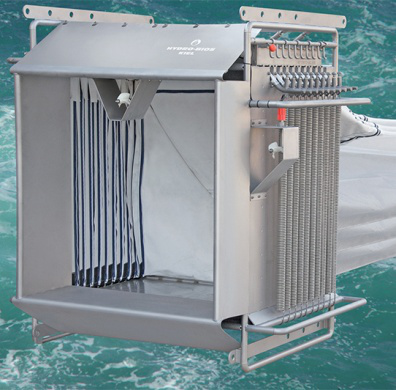

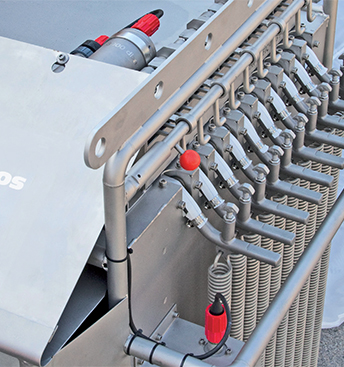

每次可采5（9）個水層樣品 | 準備入水 | 高強度彈簧提供網口開閉的動力 | 鈦合金倉內的高精度步進馬達和控制單元 |
MultiNet?浮游生物采樣網網袋的開啟與關閉是通過一個電池驅動的馬達單元激發的?？刂凭W(wǎng)袋開關的指令是通過甲板控制單元和水下單元之間的單芯和多芯電纜傳輸?shù)?。我們可以提供各種網袋，適用于各種標準的和非標準的應用場合。對于常規的水平采樣操作，我們推薦您使用孔徑為300微米（孔徑從100微米至500微米都是可選的）的網袋；對于垂直采樣來說，網孔大小從55微米到500微米都是適用的。
MultiNet?浮游生物采樣網的水下單元中集成一個壓力傳感器，深度和所有其他系統相關數據會一起在甲板控制單元的液晶顯示屏上顯示。水下單元上可以安裝兩個帶有角度補償功能的電子網口流量計：一個裝在水下單元的開口內，用于測定通過網口的水量；另一個裝在水下單元開口外，用于測定“堵塞效應”。
在水平采樣操作中，MultiNet?浮游生物采樣網安裝了一個V-Fin深度抑制器；在垂直采樣操作時，一個不銹鋼支撐安裝在網底管固定器上，以便垂直采樣時，采樣網能夠安全迅速地降到所需的深度。
|
|
|

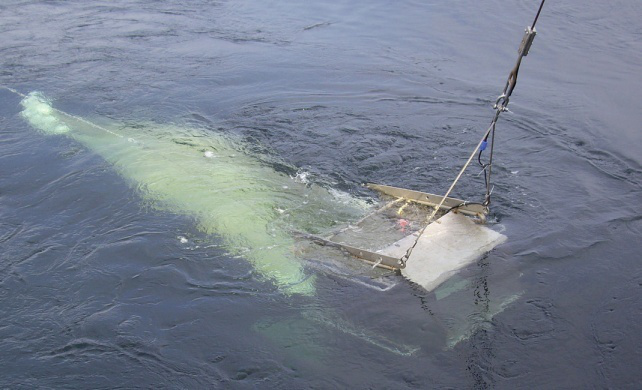

工作中的MultiNet | 甲板單元 | 2010年南海作業 |
MultiNet?浮游生物連續采樣網設備特點：
√水平操作和垂直操作
√容易操作
√雙向通訊
√標準深度3000米，可選工作深度6000米，11000米
√長距離FSK自動測量記錄傳導
√電量消耗低
√電池供電的水下單元
√EC-認證(CE)EN 50081-1,EN 50082-1
√操作溫度范圍-40℃ ~ +85℃
MultiNet?浮游生物連續采樣網的操作：
在初始位置的時候，MultiNet?浮游生物連續采樣網上的所有網袋是關閉的。水流可以很自由地流過浮游生物連續采樣網的框架，并允許采樣器以合適的速度降到期望的深度，然后按下甲板單元上的按鈕，可以使第1個網袋打開，當操作結束時，可以通過第2個指令將其關閉。在第1個網袋關閉的同時，第2個網袋會接著打開，當甲板單元顯示激活的網袋號碼時，這些網袋會重復以上過程。在操作Mini型和Midi型MultiNet?浮游生物連續采樣網時，第5個網袋保持敞開狀態，MultiNet?浮游生物連續采樣網會收集從期望深度到表層的浮游生物。在操作Maxi型和Mammoth型MultiNet?浮游生物連續采樣網時，第9個網袋可以在到達水面之前閉合。

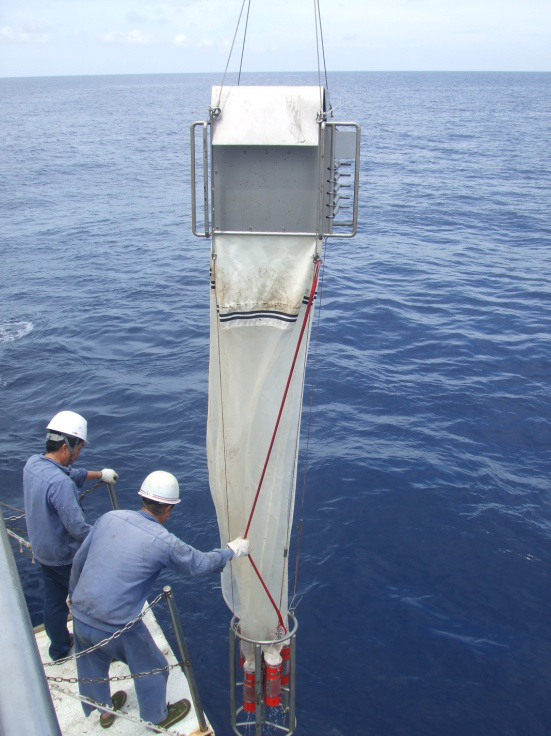

MultiNet浮游生物連續采樣網入水姿態 MultiNet浮游生物連續采樣網整裝待發
MultiNet?浮游生物連續采樣網與CT組件：
MultiNet?浮游生物連續采樣網與CT組件結合在一起，擁有一臺CTD（溫鹽深儀）的完整功能。CT組件由一個電導率傳感器，一個溫度傳感器和一塊附加電路板組成，它們集成在MultiNet?浮游生物連續采樣網的馬達驅動單元中。根據UNESCO公式，系統可以從獲得的CTD數據，計算出鹽度、密度和聲速等指標。
MultiNet?浮游生物連續采樣網的額外選擇：
√各種參數的傳感器，如鹽度、溫度、葉綠素a、濁度、姿態傳感器等
√電池供電的手持終端，當在線操作沒有交流電供電時，用來代替甲板控制單元
√MultiNet?浮游生物連續采樣網有適用于6000米和11000米采樣的特殊型號
MultiNet?浮游生物連續采樣網細節展示：
MultiNet?浮游生物連續采樣網技術參數：
浮游生物連續采樣網MultiNet傳感器技術參數
傳感器 | 范圍 | 精度 | 分辨率 | 耐壓水深 |
壓力 | 0-3000dbar (0-6000dbar可選) | ±0.1%FS | 0.002% FS | 6000米 |
溫度 | -2~+32℃ | ±0.005℃ | 0.0006℃ | 6000米 |
電導率 | 0-65mS/cm | ±0.01mS/cm | 0.0003mS/cm | 6000米 |
葉綠素a | 0-150μg/L | ±2%FS | 0.025μg/l | 6000米 |
濁度 | 0-650 FTU | ±2%FS | 0.1FTU | 6000米 |
四款浮游生物連續采樣網MultiNet?詳細技術參數對比表
小型Mini | 中型Midi | 大型Maxi | 猛犸象型Mammoth | |
水下單元： | ||||
尺寸： 寬*長*高 | 65*90*80cm | 80*90*95cm | 120*110*135cm | 150*120*160cm |
網開口 | 35.5*35.5cm | 50*50cm | 71*71cm | 100*100cm |
網袋 | 5個/160cm長 | 5個/250cm長 | 9個/365cm長 | 9個/550cm長 |
標準網孔 | 300μm | 300μm | 300μm | 300μm |
網底管 | 5個/直徑11cm | 5個/直徑11cm | 9個/直徑11cm | 9個/直徑11cm |
工作時系統總長度 | 470 cm | 560cm | 800cm | 1000cm |
工作深度 | 3000m/6000m/ 11000m | 3000m/6000m/ 11000m | 3000m/6000m/ 11000m | 3000m/6000m/ 11000m |
壓力傳感器 | 3000dbar±0.1%f.s. (其他范圍可選) | 3000dbar±0.1%f.s. (其他范圍可選) | 3000dbar±0.1%f.s. (其他范圍可選) | 3000dbar±0.1%f.s. (其他范圍可選) |
小型Mini | 中型Midi | 大型Maxi | 猛犸象型Mammoth | |
重量： | ||||
網框 | 75kg | 100kg | 260kg | 390kg |
不銹鋼支撐 | 30kg | 50kg | 70kg | 100kg |
V-Fin 深度抑制器 | 22Kg | 22Kg | 70Kg | 70Kg |
材質： | ||||
網框 | 不銹鋼 | 不銹鋼 | 不銹鋼 | 不銹鋼 |
馬達單元 和電池艙 | 鈦合金 | 鈦合金 | 鈦合金 | 鈦合金 |
網袋 | 聚酰胺 | 聚酰胺 | 聚酰胺 | 聚酰胺 |
網底管 | PVC | PVC | PVC | PVC |
V-Fin 深度抑制器 | 鋁 | 鋁 | 鋁 | 鋁 |
斷裂負載： | ||||
淺水工作(0-500m) | 約1500kg | 約2000kg | 約4000kg | 約8000kg |
深水工作(500-3000m) | 約5000kg | 約8000kg | 約12000kg | 約18000kg |
電氣連接參數： | ||||
連接插頭 | SUBCONN BH 2 M | SUBCONN BH 2 M | SUBCONN BH 2 M | SUBCONN BH 2 M |
電纜反向插頭 | SUBCONN IL 2 F | SUBCONN IL 2 F | SUBCONN IL 2 F | SUBCONN IL 2 F |
電纜連接 | 單芯或多芯電纜 | 單芯或多芯電纜 | 單芯或多芯電纜 | 單芯或多芯電纜 |
電纜電阻(回路) | 1000Ω | 1000Ω | 1000Ω | 1000Ω |
甲板控制單元 | 通過按鈕控制網袋的閉合，顯示網袋序號，壓力，電池狀態，通過網口的水的流量和流速等；帶LED背景光的液晶顯示器；與PC連接的RS232接口 | |||
電源： | ||||
水下單元 | 3節3V鋰電池供電 | 3節3V鋰電池供電 | 3節3V鋰電池供電 | 3節3V鋰電池供電 |
甲板控制單元 | 85-260V AC | 85-260V AC | 85-260V AC | 85-260V AC |
拖網速度(當網袋的孔徑為300μm時)： | ||||
水平操作 | ≤4knots | ≤4knots | ≤4knots | ≤4knots |
垂直操作 | ≤1m/s | ≤1m/s | ≤1m/s | ≤1m/s |
